Purpose and Application
- ElectrophoresisFor high speed mode electrophoresis SDS-PAGE, Native-PAGE etc.
Polyacrylamide gel/Agarose gel DNA electrophoresis
Isoelectric focusing electrophoresis (IEF) of protein etc. - Blotting
High speed mode blotting
Semi-Dry blotting
Wet blotting etc.
Features
- The World’s first Touch panel control!
Simple operation with big touch color screen
Operation system with a latex glove - Big screen color display
Set value · Output value · Timer · Error · Graph display etc.
Easy to control with a simple menu screen - Broad output range
Voltage 0~500V , Current 0~3000mA
Available with High-speed mode electrophoresis and High-speed mode blotting
Isoelectric focusing electrophoresis (IEF) of protein - Simple operation
Manual mode: only to input current (or voltage) under constant current (or voltage) setting
Method file mode: Select condition from the saved file list, Able to save 20 files: 1 file for 9 steps (Auto switching step)
Easy mode: Self Select SDS-PAGE, Blotting, etc. - Other functions
Detect an error with display on screen · Alarm notice
Output pause: it is able to change set value during output operation
Output graph: Able to check a Graph display of actual output values
Power fail recovery
Display an animal on screen during an output operation
Display preview:
Specifications

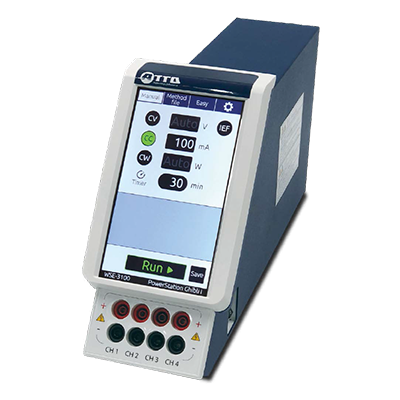

| WSE-3100 PowerStation Ghibli I | |
|---|---|
| Setting | Voltage: 3-500 V (1 V step), Current: 10-3,000 mA (1 mA step), Power: 1-200 W (1 W step) |
| Output range | Voltage: 0-500 V, Current: 0-3,000 mA, Power: 0-200 W |
| Accuracy | Voltage 151-500 V: ±2%+4digits, Voltage 51-150 V: ±3%+4 digits, Voltage 0-50 V: display value±1.5 V Current 301-3,000 mA: ±1%+5digits, Current 0-300 mA: display value±3 mA |
| Timer | 1-999 min, Count down, Timer ON/OFF |
| Display operation | 7 inch color screen pressure sensitive touch panel |
| Operation | Constant current, voltage, power / Cross over, Manual mode, Easy mode, Method file mode: 20 files available, 1 file for 9 steps (Auto switching step) |
| Safety function | Open, short and other types of abnormality detection / error display, alarm |
| Other functions | Pause, Graph display of actual output values, Power fail recovery ON/OFF |
| Safety condition | 0-40℃, 20-90%RH (Not acceptable condensation) |
| Power | AC100-240 V, 50/60 Hz |
| Output terminal | 4 groups parallel output |
| Dimension | 119 (W) x 417 (D) x 224 (H) mm |
| Weight | 6 kg |
